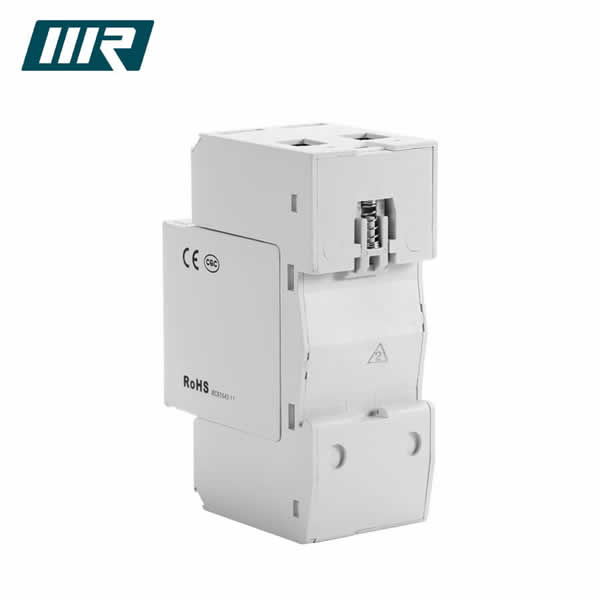

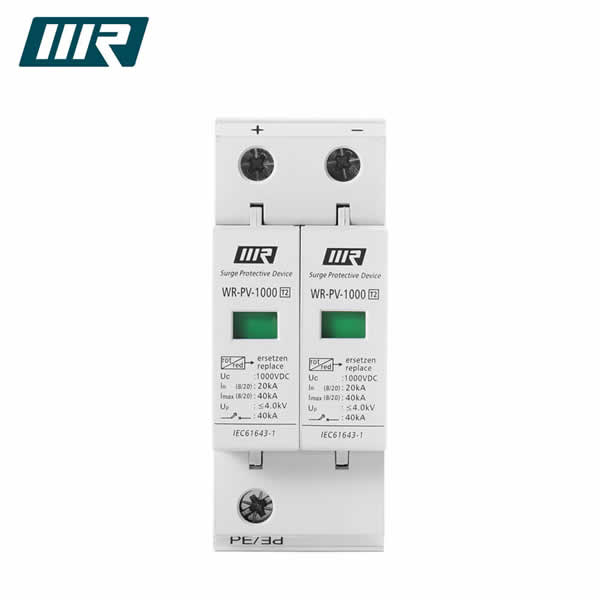

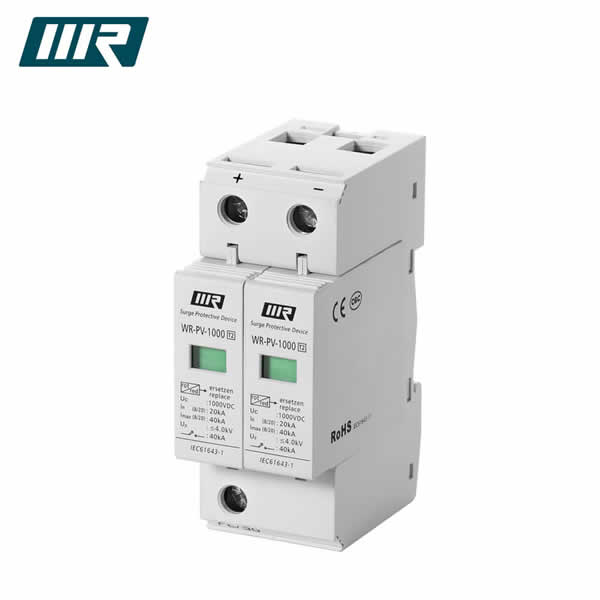

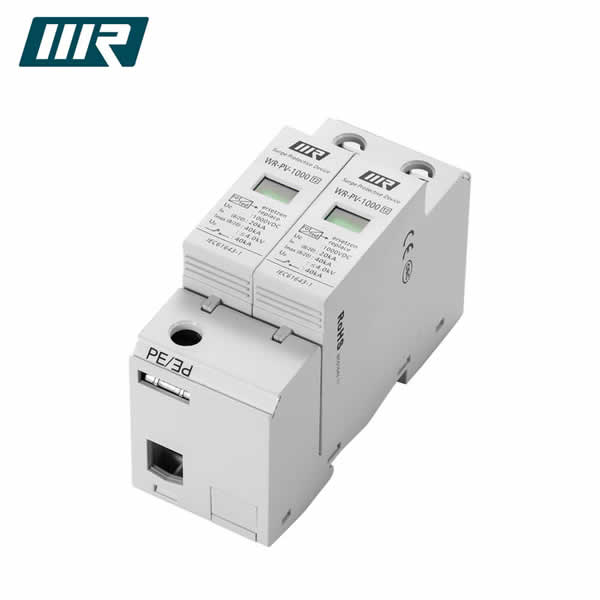

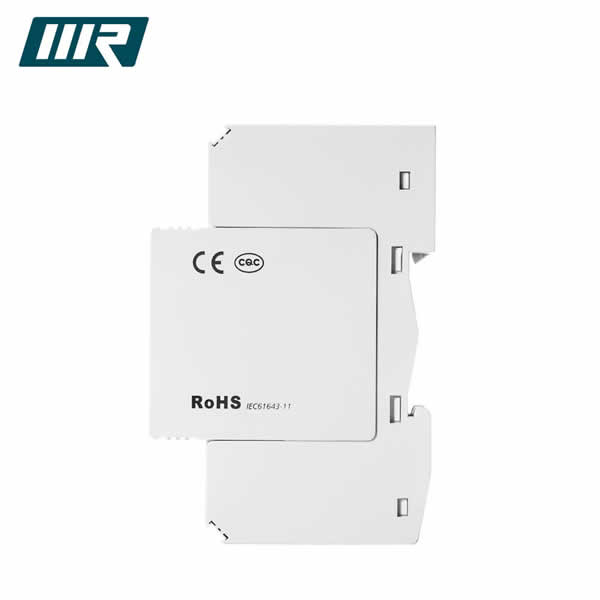

WRDZ DC Solar Power System SPD PV Surge Protection

Surge Protective Device
DC T2 Type 600-1200v 20/40kA 2P
Contact Now
WRDZ DC Solar Power System SPD PV Surge Protection
solar system
WRDZ DC Solar Power System SPD PV Surge Protection
pv surge protection
spd
solar system, pv surge protection, spd
  • Consistent   pluggability(even for N/PE spark gap)
  • Own developed technology to manufacture MOV
  • Thermal disconnect device for each individual connector
  • Optical,mechanical status indication for the individual arresters
  • With or without floating remote indication contact
  • Suitable for almost all network conflgurati ons
  • Din rail mountable (35 mm)
Type WR-PV / 2P
Rated voltage (max.continuous a.c.voltage) [ Uc ] 800V   / 1000V /1200V
Nominal discharge current (8/20) [ ln ] 20kA
Maximum discharge current [ Imax ] 40kA
Voltage protection level [ Up ] ≤3.2kV / ≤4.0kV / ≤4.4kV
Response   time [ tA ] ≤25ns
Max.backup fuse 125A gL/gG
Operating temperature range [ Tu ] -40℃...+70℃
Cross-sectional area 1.5mm² ~   25mm² solid / 35mm² flexible
Mounting on 35mm DIN rail
Enclosure material Purple   (module)/light gray (base) thermoplastic,UL94-V0
Dimension 2 mod
Test standards IEC 61643-1; GB   18802.1; YD/T 1235.1
Certification CE    ROHS  ISO9001  CQC
Type of remote signalling contact Switching   contact
Switching capacity a.c 250V / 0.5A
Switching capacity d.c 250V / 0.1A;   125v/0.2A; 75v/0.5A
Cross-sectional area for remote signalling contact Max.   1.5mm² solid / flexible
Packing uint 2 pc(s)
Weight 300g
