| Type |

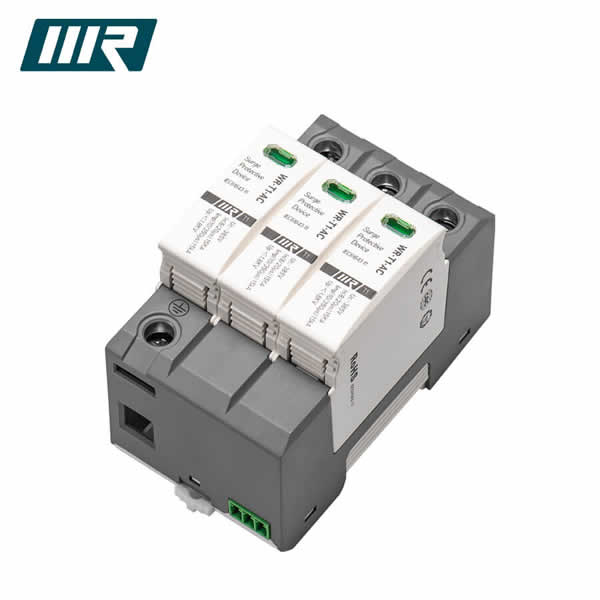

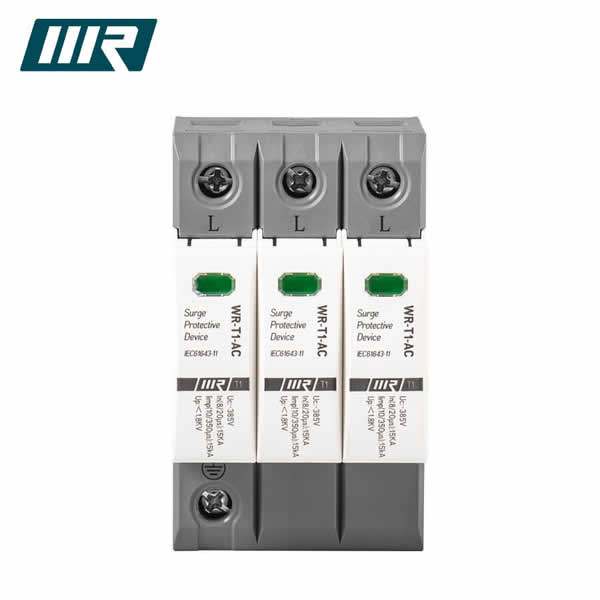

T1-AC / 3P |
| Rated voltage (max.continuous a.c.voltage) [ Uc ] |
385V or 275V |
| Lightning impulse current (10/350) [ lImp ] |
15kA |
| Nominal discharge current (8/20) [ ln ] |
50kA |
| Voltage protection level [ Up ] |
≤1.8kV |
| Follow current extinguishing capability at UC [ If ] |
32A fuse will not be triggered at 2kArms 255V |
| Response time [ tA ] |
≤100ms |
| Max.backup fuse(L) |
200A gL/gG |
| Max.backup fuse(L-L') |
125A gL/gG |
| TOV voltage |
335V/5sec |
| Operating temperature range (parallel wiring) [ Tup ] |
-40℃...+80℃ |
| Operating temperature range (through wiring) [ Tus ] |
-40℃...+60℃ |
| Cross-sectional area |
35mm² solid / 50mm² flexible |
| Mounting on |
35mm DIN rail |
| Enclosure material |
Purple (module)/light gray (base) thermoplastic,UL94-V0 |
| Dimension |
2 mods |
| Test standards |
IEC 61643-1; GB 18802.1; YD/T 1235.1 |
| Certification |
CE ROHS ISO9001 CQC TUV |
| Type of remote signalling contact |
Switching contact |
| Switching capacity a.c |
250V / 0.5A |
| Switching capacity d.c |
250V / 0.1A; 125v/0.2A; 75v/0.5A |
| Cross-sectional area for remote signalling contact |
Max. 1.5mm² solid / flexible |
| Packing uint |
1pc(s) |
| Weight |
294g |
